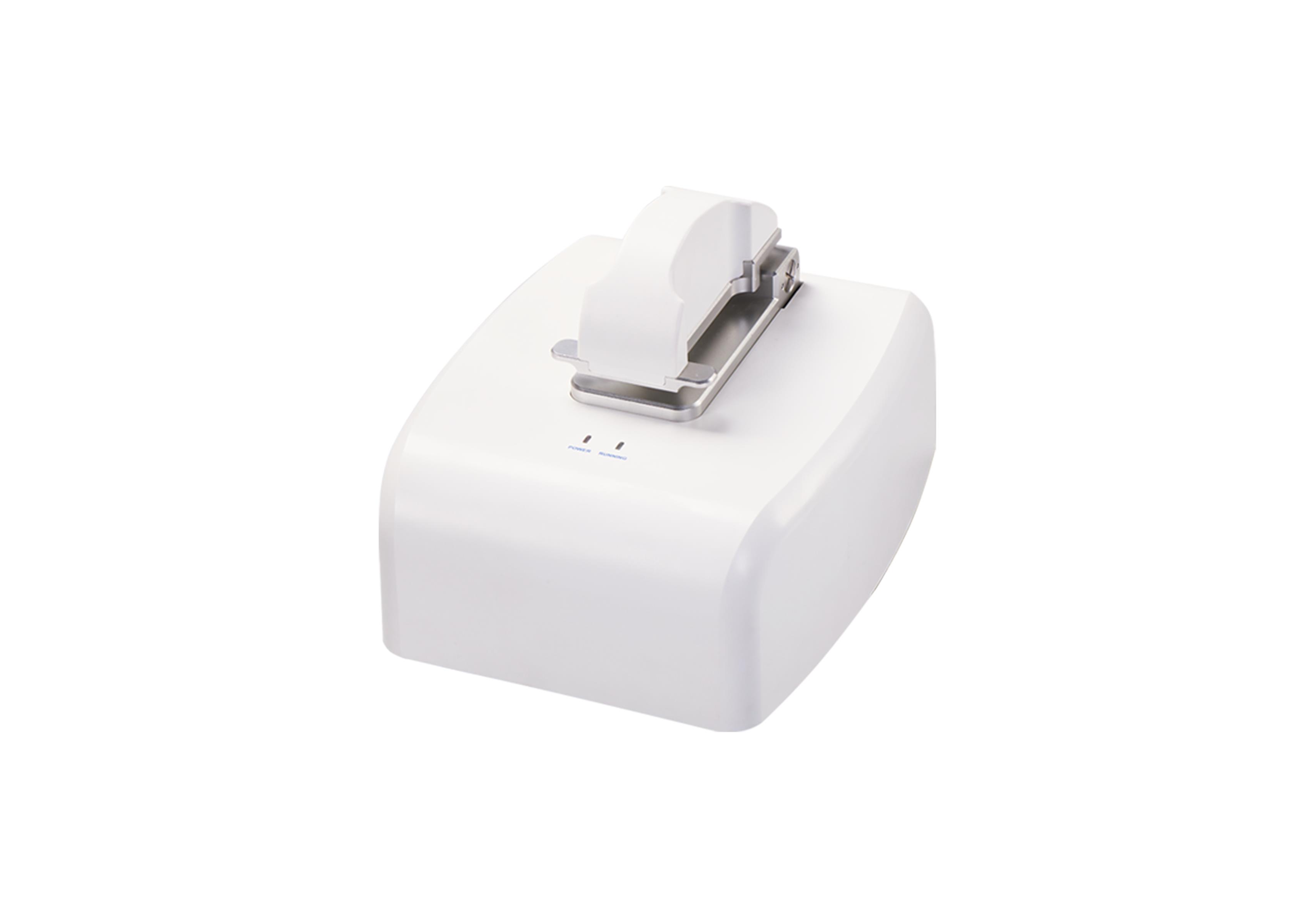

Micro Spectrophotometer Nano-100

Nano-100 is a perfect full-spectrum, UV-Vis spectrophotometer, used to quantify and assess concentration of DNA, RNA, protein and more.

Nano-100 utilizes CCD detector, a Xenon light source for long lifetime lamp together with simple software. Simple pipette 0.5~2 μl sample onto the pedestal, laying down the sampling arm, it can complete the measurement within 5 seconds.

• Model Nano-100

• Wavelength range 200-800 nm

• Minimum sample size 0.5-2.0 μl

• Path length 0.2 mm 1.0 mm

• Light source Xenon flash lamp

• Detector type 2048-Linear CCD array

• Spectral resolution 1 nm

• Spectral resolution ≤3 nm

• Absorbance precision 0.003Abs

• Absorbance accuracy 1%（7.332Abs at 260 nm)

• Absorbance range 0.04 - 90 A

• Detects nucleic acid up to 2~4500 ng/μl (dsDNA)

• Measurement time <5 S

• Data output Connect PC

• Sample pedestal material Aluminum alloy and Quartz fiber

• Operating voltage DC 24 V 2 A

• Operating power 20 W

• Standby power 5 W

• Dimension (W×D×H) mm 200×250×166

• Weight 2.6 kg

• Software compatibility WinXP, Win7, Win8
