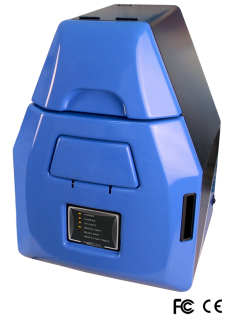

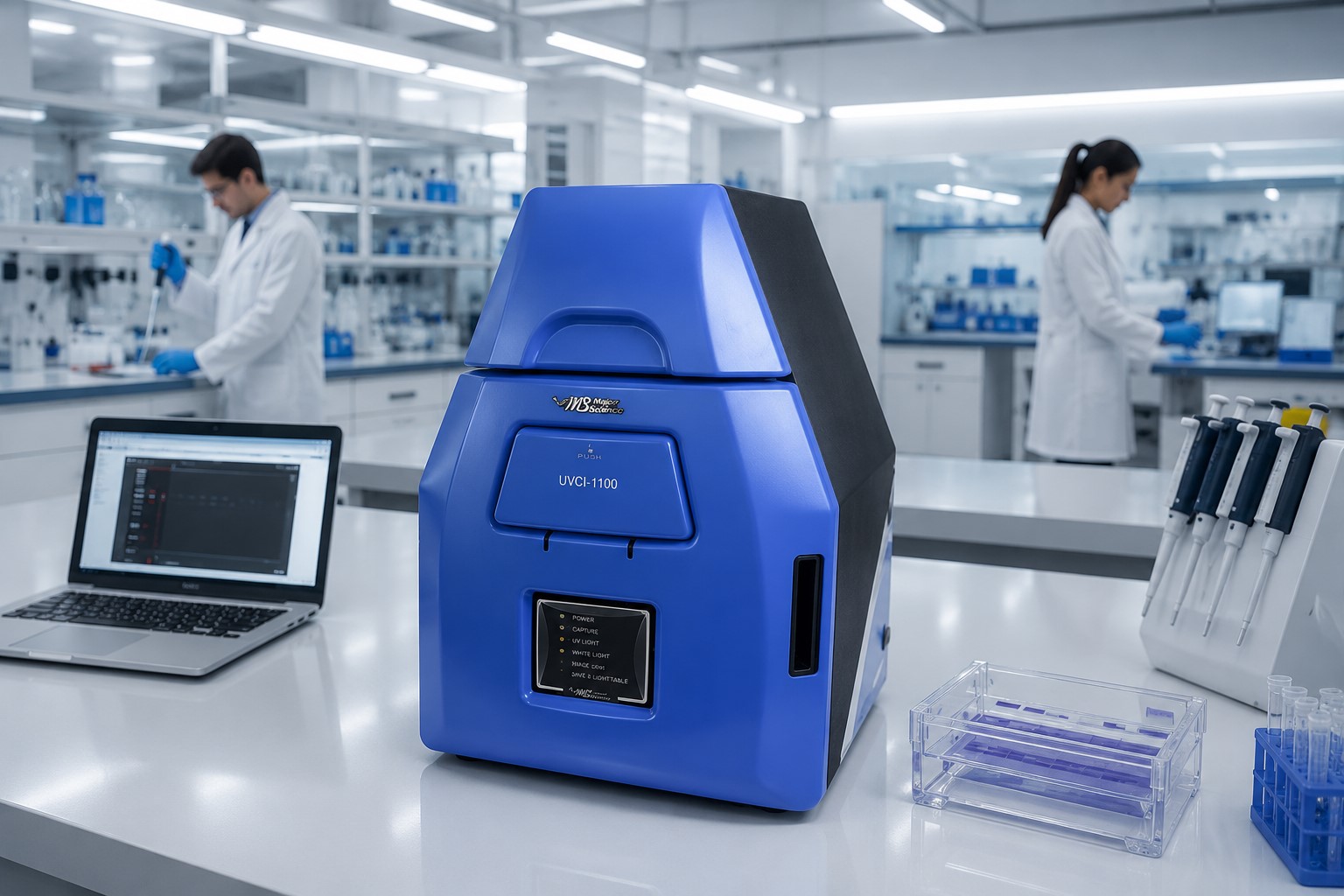

Major UVCI-1100
The SmartView Pro 1100 provides the basic feature and standard operation. All important features such as safety UV door, UV safety-cutoff switch function, 1D analysis software and are included as standard. 1D analysis software can be used for DNA/RNA gels and SDS page images observation and capture. Moreover, it can be used as an image analysis software for DNA/RNA gels and dot blotting. Blue light module, white light plate and optical and amber filters are available for a variety of applications. Enjoy the most compact CMOS imaging system for all of your laboratory work.
Features
• High resolution 5.0 megapixel monochrome camera (UVCI-1100)
• PC integration with real time image
• Capture/Analysis software included
• Pull out UV Transilluminator for easy gel cutting
• Easy installation, ready to use right out of the box
• One touch image capture
• Variety of optional accessories available
• UV safety cut-off switch when door is open
• CE and FCC certification
Specification
| Model |
SmartView Pro 1100 |
| Cat. No. |
UVCI-1100 |
| UV Light |
Built-in drawer type UV Transilluminator 312(302)nm |
| Camera |
1/2.5" 5M Pixel Monochrome sensor |
| Pixels Size |
2.2μmx2.2μm |
| Lens (Camera) |
6mm, F1.2 |
| Camera Video Output |
12-bit |
| Filter (Camera) *Ordered separately |
Optical EtBr Filter / Optical SYBR Green Filter / Yellow Amber Filter / Orange Amber Filter |
| Image Storage |
PC |
| Software Support |
Window 10 / 8 / 7 (64bit & 32bit) / XP / Vista |
| Cabinet |
Pull out, sliding transilluminator |
| Field Of View (WxL) |
Approx. 10.2"x8.3" (260x210mm) |
| Dimension (WxLxH) |
Approx. 16.1"x15.9"x22.4" (410x405x570mm) |
| Weight |
Approx. 54lbs. (24.5kg) |
| Display |
LED indicator light |
| Viewing Window |
Built-in UV viewing window |
| Window Filter |
Built-in Viewing Window Amber Filter 580nm |
| Light |
White light (standard) |
| Optional Accessory |

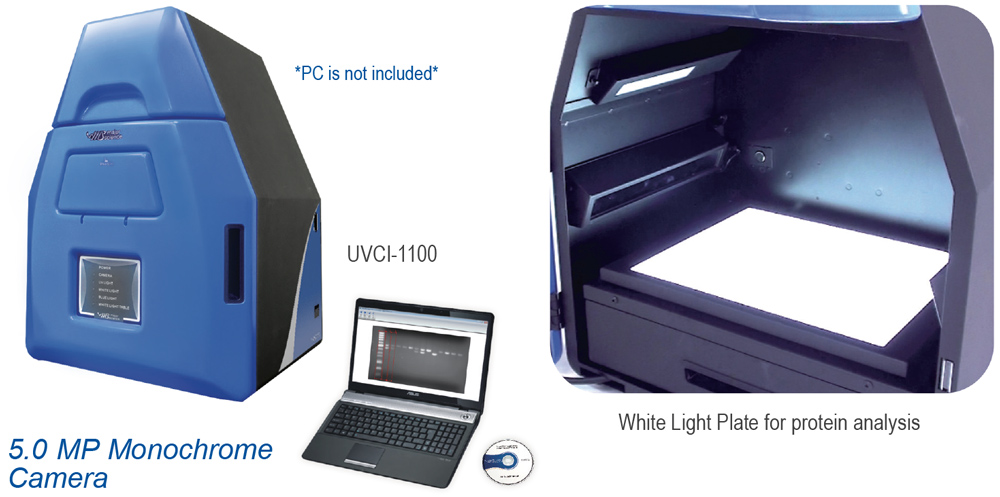

White Light Plate (power built-in) |
| Blue light (power built-in) 470nm |
| Safety |
CE, FCC |
| PC Connection |
USB port |
| 1 D Analysis Software |
Cat. No. MBE-IMG-SW included |
| Saved Image |
BMP/JPEG/PNG/TIFF, 8 bit; PNG/TIFF, 16 bit |
| Rated Voltage |
100-240V~, 50/60Hz, 2A |

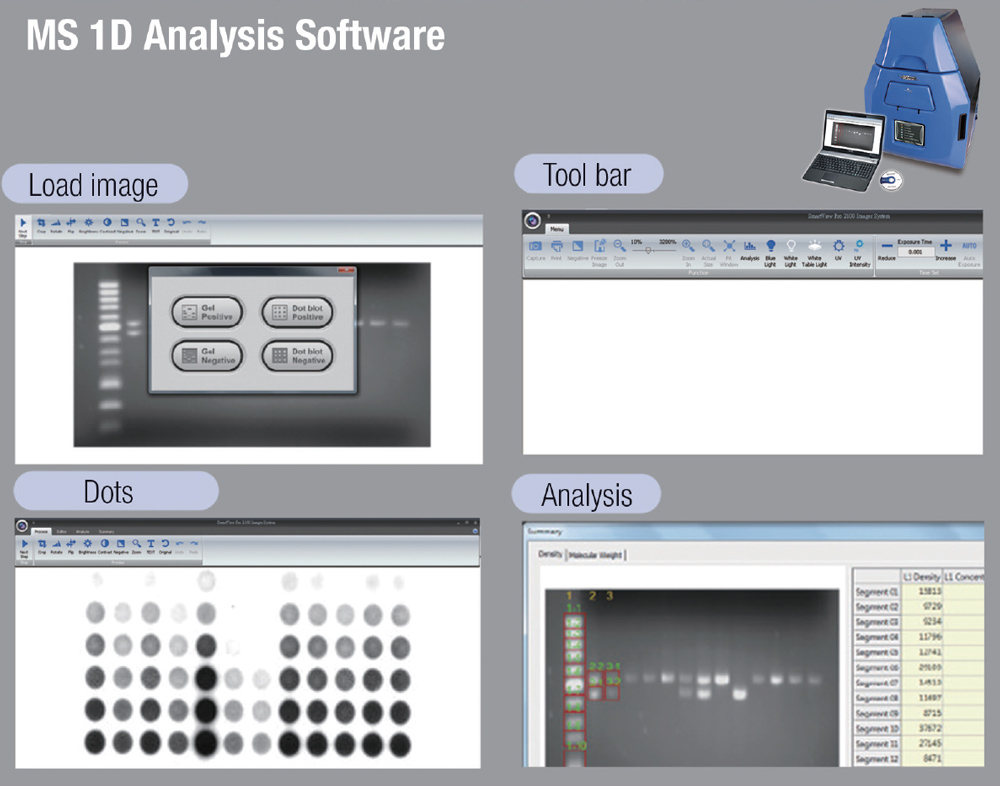

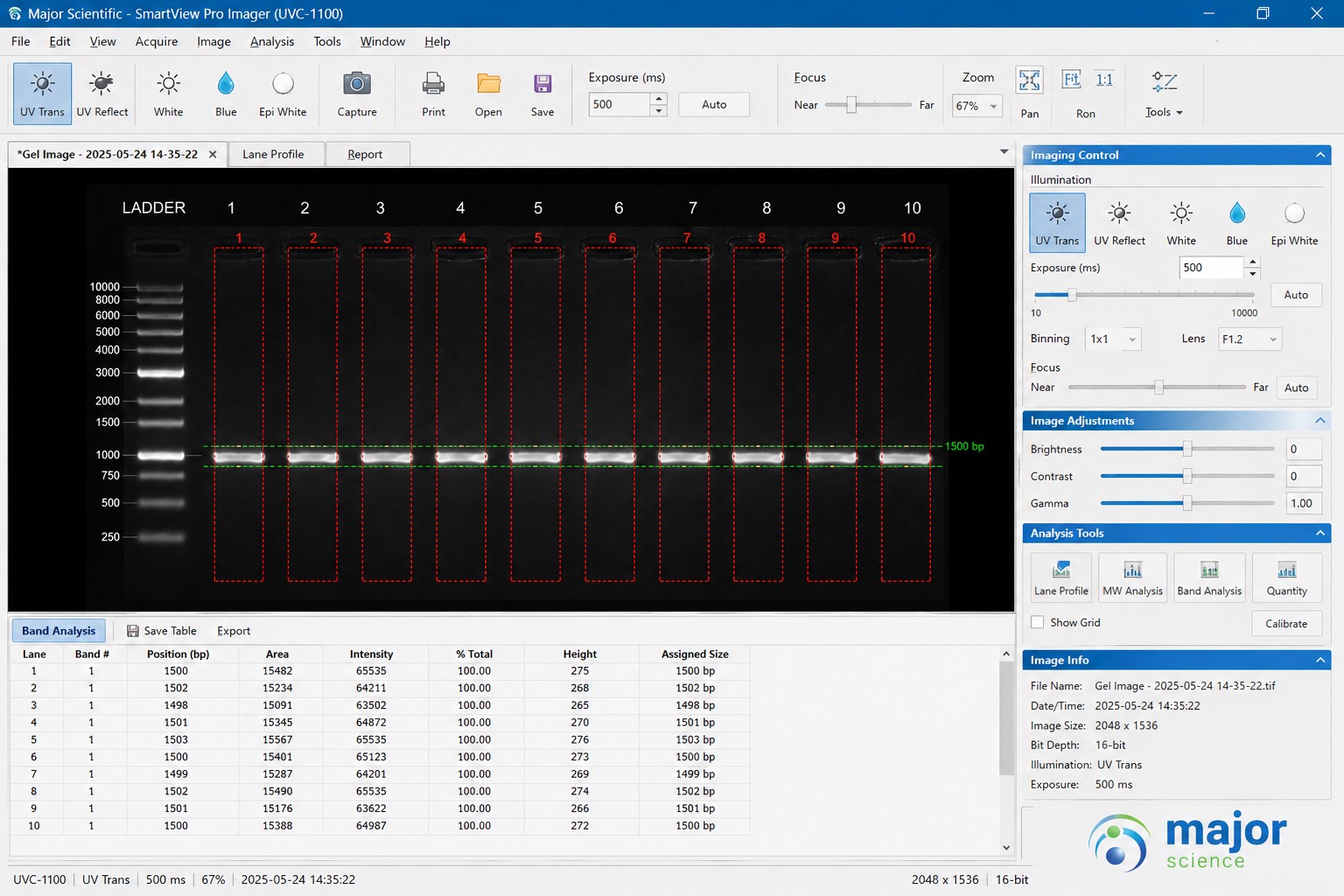

Major Science Imager Capture/Analysis Software

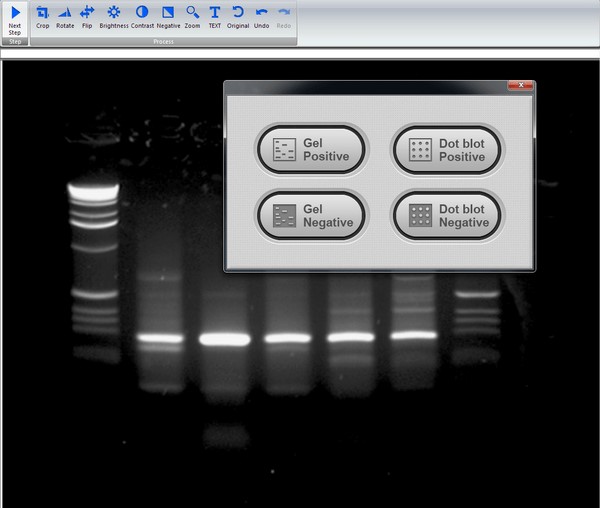

The MS Imager anslysis software provides ease and convenience toward your gel analysis needs. Now you can quantify nucleic acid gels, protein gels, weatern blots, Coomassie/silver stains, or dot blots with simple and user-friendly interface. The Imager analysis software automatically guides you along the way step-by-step to offer fast and accurate quantitation. The Imager analysis software allows you to automatically calculate the density and molecular weight of the electrophoresis gels for a full analysis. Five easy and simple steps readily convert an image of any format into pixel density and area values.

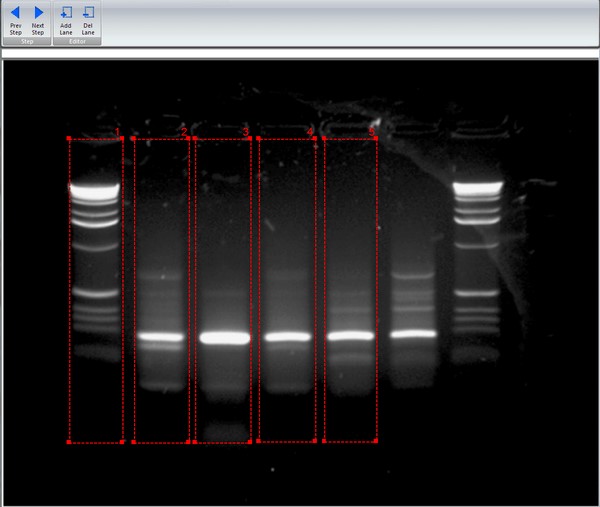

- Quantify lanes, segments, and dot blots
- Analyze TIFF, JPG, BMP, GIF image formats
- Density and molecular weight determination on electrophoresis gels and blots
- Analyzed data exportable in excel format
- Included as standard for UVCI-1100
- Intervene or edit each step within workflow analysis
Specification:
| Operating System |
Windows 10 / 7 SP1/ Vista SP1/ XP SP3 |
| Processor |
1.8 GHz Pentium IV or equivalent AMD Athlon processor |
| Memory |
1 GB |
| Storage |
1 GB available HD space |
| Connectivity |
1 USB 2.0 port |
| Display |
1280 x 800 resolution |
| Media |
CD-ROM drive |
