Maxi Horizontal Gel Electrophoresis System

Ürün Ölçü Fiyat TL Miktar
Maxi Yatay Elektroforez Sistemi (2 tepsi ve 2 taraklı)
ME20-10-20
1 Set 1323 USD
+%20 KDV
60.328,80 TL
Maxi Yatay Elektroforez Sistemi (1 tepsi ve 2 taraklı) (Katalog Ürünüdür)
ME20-25
1 Set 1420 USD
+%20 KDV
64.752,00 TL

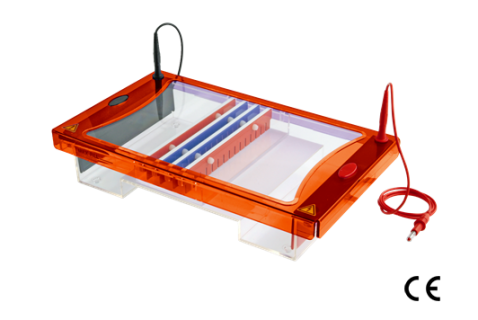

Maxi   is primarily designed for resolution of high numbers of samples as in cloning or PCR experiments. Maxi allows ultra high-resolution separations over extended runs. Tray sizes correspond to standard blotter sizes. It also allows for easy sample transfer onto a membrane for further analysis. Three tray sizes are available, 20 x 20cm, 20 x 25cm and 20 x 10cm. Multi-channel pipette compatible combs for up to 40 samples each facilitate speed loading of up to 440 samples per gel. 50 sample combs (not multi-channel pipette compatible) allow maximum sample capability of 550 samples per gel.

  • Low buffer consumption

  • Single molded tank

  • Three tray options available

  • Multi-channel pipette compatibility

  • Great indications for gel making and running

  • Up to 450 samples per tray

  • No tape, clamps or springs needed

Cat. No. ME20-10-20 ME20-25
 Unit Dimension (W x L x H) 395 x 230 x 90mm
 Gel Dimension (W x L)  200 x 100mm 200 x 250mm
200 x 200mm
 Maximum Sample  200 for 200 x 100mm Tray (4 x 50 sample combs) 550 for 200 x 250mm Tray (11 x 50 sample combs)
450 for 200 x 200mm Tray (9 x 50 sample combs)
 Buffer Volume 1200ml
Construction  Injection molded construction
Durable, leak proof environment for complete safety and long life
Cassette Type Electrode  Inexpensive, easy to replace
Made of 99.99% corrosion resistant pure platinum
 Electrical Safety  Lid can only be fastened in one way
On removal, power is disconnected from buffer chamber
 Rapid Casting Gel Use casting dams





















Maxi-plus   is designed for rapid screening of very large numbers of cloning or PCR samples, and it has the maximum capacity of 672 samples per gel. This allows loading and analysis of exactly seven 96 well format micro titer plates. The large gel run length of 32cm also allows resolution of samples over a long distance for separation of complex sample bands such as in restriction fragment analysis. Maxi-plus is available with a full length tray of 26 x 32cm or with two other tray length options of 26 x 16cm and 26 x 24cm so that user’s exact requirements can be matched. In addition to options for single length gel trays, Maxi-plus is available with all three gel tray lengths to provide the maximum flexibility, versatility and value. Buffer recirculation ports are included as standard to allow enhanced resolution over extended runs, while loading guides enhance well visibility for easy sample loading.

  • Low buffer consumption

  • Single molded tank

  • Three tray options available

  • Multi-channel pipette compatibility

  • Great indications for gel making and running

  • Up to 672 samples per tray

  • No tape, clamps or springs needed

Cat. No.  ME26-16-24-32
 Unit Dimension (W x L x H)  500 x 280 x 90mm
 Gel Dimension (W x L)    260 x 160mm
 260 x 240mm
 260 x 320mm
 Maximum Sample    336 for 260 x 160mm Tray (6 x 56 sample combs)
 504 for 260 x 240mm Tray (9 x 56 sample combs)
 672 for 260 x 320mm Tray (12 x 56 sample combs)
 Buffer Volume  1400ml
 Construction   Injection molded construction
 Durable, leak proof environment for complete safety and long life
 Cassette Type Electrode   Inexpensive, easy to replace
 Made of 99.99% corrosion resistant pure platinum
 Electrical safety   Lid can be fastened in only one way
 On removal, power is disconnected from buffer chamber
 Rapid Casting Gel  Use casting dams



www.bmlabosis.com



Bu ürün BM Laboratuvar sistemleri tarafından ithal edilmektedir.



Ürün Ölçü Fiyat TL Miktar
ME20 için Ekstra Tarak Çeşitleri
ME20 comb
1 Adet 195 USD
+%20 KDV
8.892,00 TL
Silikon Jel Tepsisi Kapatma Aparatı
ME20-UVDAM
2 Ad/pk 300 USD
+%20 KDV
13.680,00 TL
