Mini Vertical Gel Electrophoresis Apparatus (Dikey Elektroforez Sistemi)

Marka:Major Science

Product Size Price TL Quantity
Mini Dikey Elektroforez Sistemi
MV-10DSYS

Product Description

Mini Vertical is an injection molded vertical elctrophoresis system providing a leak-proof environment and safe operation. Its vertical tank is designed for blotting compatibly. The dual 10 x 10cm plate is the most popular application and it is capable of handling up to 4 plates. In addition, packages with Minis 300V Power supply series are ideally offered to individuals in the labratory at a competitive and acceptable pricing to avoid time wating for basic instruments and to accelerate experimental progress.

Features

  • Low buffer consumption
  • Single molded tank
  • Up to 4 gels run at one time
  • Great indications for gel making and running
  • Ice cooling pack
  • Easy gel casting and no gel leakage
  • Competitive pricing
  • Compatible with all precast gels (100x100mm or 100x80mm)

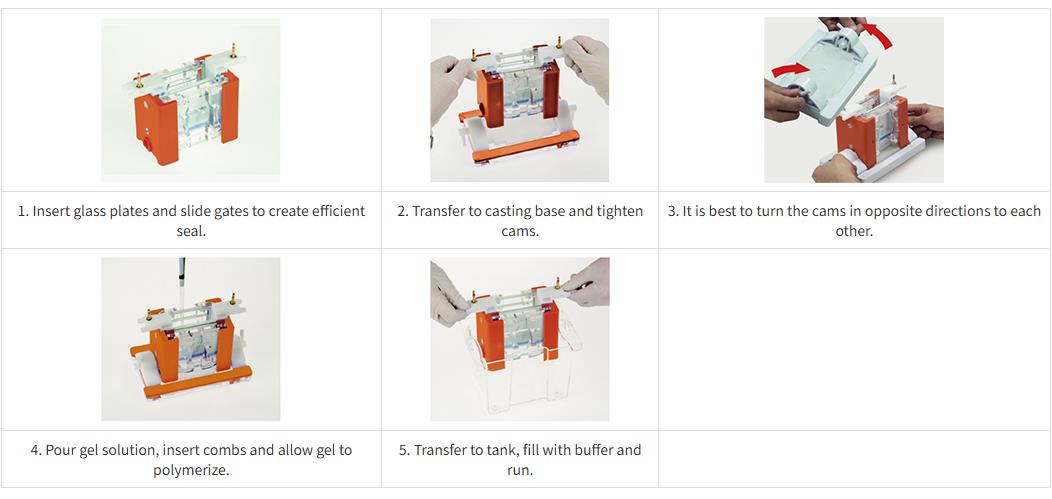

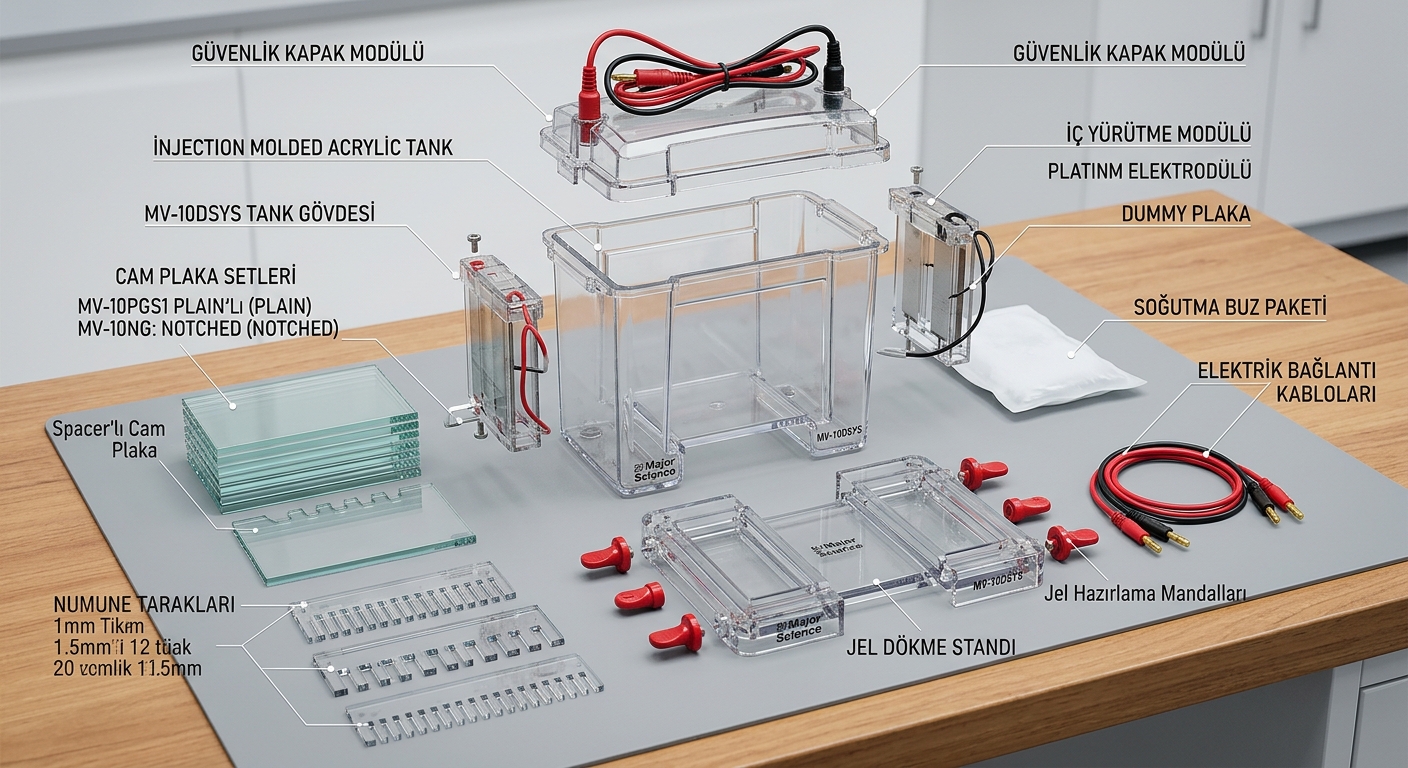

This product is offered as a complete system for the user to cast, and run electrophoresis. including:

  • 1 x Electrophoresis tank & lid & inner running module
  • 1 x MV-10NG (100x100mm notched glass plates, 2mm thick, pk/2)
  • 1 x MV-10PGS1 (100x100mm plain glass plates with 1mm bonded spacers, pk/2)
  • 1 x MV-10DP (dummy plate)
  • 2 x MV-10-12-1 (12 sample combs, 1mm thick)
  • 1 x MV-10DCAST (100x100mm casting base )
  • 1 x MV 10ICB (mini cooling pack)
  • 1 x Black & red electrophoresis cable
Cat. No. MV-10DSYS
Dimension (WxLxH) Approx. 7.5"x5.1"x5.9" (190x130x150mm)
Plate Dimension (WxL) Approx. 3.9" 3.9" (100x100mm)
Gel Dimension (WxL) Approx. 3.4"x3.2" (85x80mm)
Maximum Sample 80 samples, 20 samples per gel
Buffer Volume 0.07gal -0.32gal (250 -1200ml)
Ice Cooling Pack Yes
Dummy Plate And Casting Base Yes
Construction Injection molded construction
Durable, leak proof environment for complete safety and long life
Electrical Safety Lid can be fastened in only one way
Upon lid removal, power is disconnected from buffer chamber
Rapid Casting Gel Use gel maker stand



Accessories

Cat. No Product Description SV
MV-10-1-0.75 Comb 1 Prep, 1 Marker, 0.75mm thick 500ul
MV-10-5-0.75 Comb 5 sample, 0.75mm thick 70ul
MV-10-8MC-0.75 Comb 8 sample MC, 0.75mm thick 40ul
MV-10-9-0.75 Comb 9 sample, 0.75mm thick 35ul
MV-10-10-0.75 Comb 10 sample, 0.75mm thick 30ul
MV-10-12-0.75 Comb 12 sample MC, 0.75mm thick 25ul
MV-10-16MC-0.75 Comb 16 sample MC, 0.75mm thick 20ul
MV-10-20-0.75 Comb 20 sample, 0.75mm thick 15ul
Cat. No Product Description SV
MV-10-1-1 Comb 1 Prep, 1 Marker, 1mm thick 650ul
MV-10-5-1 Comb 5 sample, 1mm thick 100ul
MV-10-8MC-1 Comb 8 sample MC, 1mm thick 60ul
MV-10-9-1 Comb 9 sample, 1mm thick 50ul
MV-10-10-1 Comb 10 sample, 1mm thick 40ul
MV-10-12-1 Comb 12 sample, 1mm thick 35ul
MV-10-16MC-1 Comb 16 sample MC, 1mm thick 25ul
MV-10-20-1 Comb 20 sample, 1mm thick 20ul
Cat. No Product Description SV
MV-10-1-1.5 Comb 1 Prep, 1 Marker, 1.5mm thick 1000ul
MV-10-5-1.5 Comb 5 sample, 1.5mm thick 140ul
MV-10-8MC-1.5 Comb 8 sample MC, 1.5mm thick 80ul
MV-10-9-1.5 Comb 9 sample, 1.5mm thick 70ul
MV-10-10-1.5 Comb 10 sample, 1.5mm thick 30ul
MV-10-12-1.5 Comb 12 sample MC, 1.5mm thick 50ul
MV-10-16MC-1.5 Comb 16 sample MC, 1.5mm thick 40ul
MV-10-20-1.5 Comb 20 sample, 1.5mm thick 30ul
Cat. No Product Description SV
MV-10-1-2 Comb 1 Prep, 1 Marker, 2mm thick 1300ul
MV-10-5-2 Comb 5 sample, 2mm thick 200ul
MV-10-8MC-2 Comb 8 sample MC, 2mm thick 120ul
MV-10-9-2 Comb 9 sample, 2mm thick 100ul
MV-10-10-2 Comb 10 sample, 2mm thick 80ul
MV-10-12-2 Comb 12 sample, 2mm thick 70ul
MV-10-16MC-2 Comb 16 sample MC, 2mm thick 50ul
MV-10-20-2 Comb 20 sample, 2mm thick 40ul

MC = Multi-channel pipette compatible;    SV = Sample volume for 5mm thick gel (ul)



www.bmlabosis.com

Bu ürün BM Laboratuvar sistemleri tarafından ithal edilmektedir.
