Maxi WAVE Vertical Electrophoresis System (Maxi Dikey Elektroforez Sistemi)

Marka:Major Science

Product Size Price TL Quantity
Complete Maxi Vertical Gel Electrophoresis Apparatus Maxi 20 x 20 cm Dual, 2 sets of Glass plates with 1mm thick bonded spacer, 2 x 24 sample , 1mm thick combs, cooling pack, dummy plate and casting base
MV-20WAVESYS

Product Description

The Maxi WAVE Vertical Electrophoresis System is our latest product innovation for large-format vertical gel electrophoresis. Designed to perform a variety of separations, including first-and second-dimension SDS-PAGE, native, preparative, gradient and high-resolution nucleic acid electrophoresis, plus capillary tube gel IEF and electroblotting, the MV-20WAVESYS is one of the most versatile maxi vertical systems available.

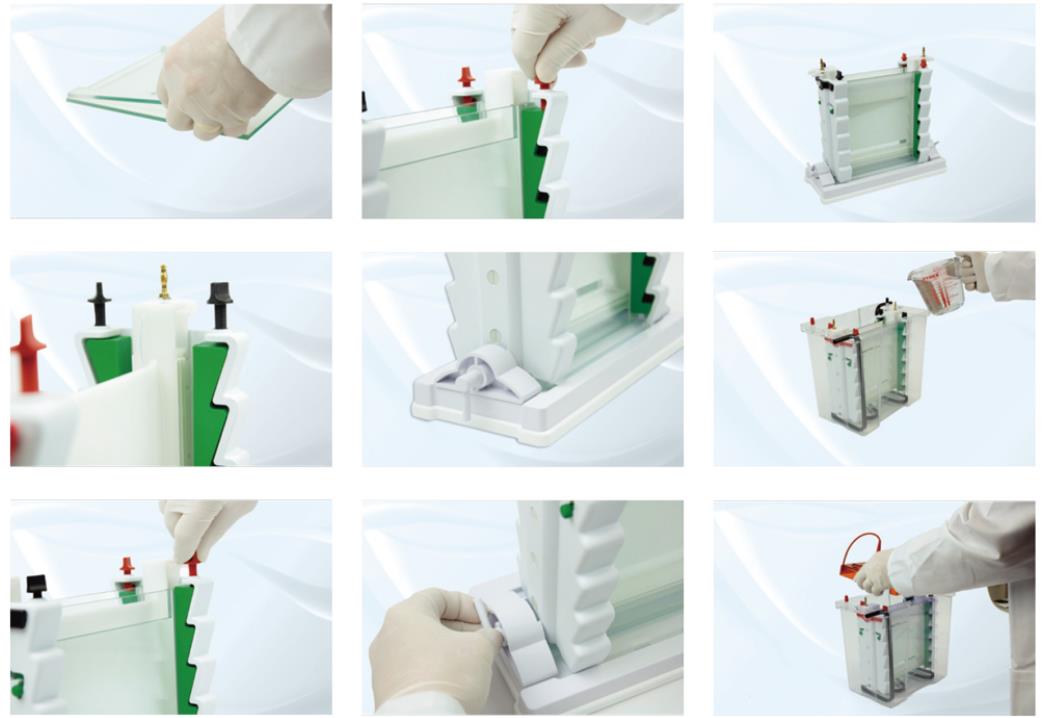

By introducing innovative, new vertical screw-clamp technology within the PAGE insert only four screws are now necessary to secure as many 20x20 gels. This gives the MV-20WAVE system the elective advantage of a much faster set up speed compared to competitor products whose traditional clamping configurations require as many as 24 screws to secure just two glass plates.
In addition, the WAVE's vertical screw-clamp configuration distributes pressure evenly along the height of the gel rather than in the center to eliminate plate bowing and gel compression, but still maintains a leak-proof seal during casting; while the ergonomic wave-like design of the PAGE insert aids both handling and set up.

Features

  • More gels run 2 to 4 gels simultaneously
  • Customize your system for second-dimension runs with 180mm IPG strips and gels using the IEF conversion kit
  • Utilize modular inserts with the same universal tank and lid to extend the application of your standard WAVE unit to create a complete 2-D or blotting system.
  • Vertical screw clamps distribute pressure evenly along the height of the gel to prevent plate bowing and gel compression
  • Glass plates compress gently against a flat, level gasket to prevent current leakage from the inner buffer chamber during electrophoresis
  • Detachable inner cooling coil connects to the laboratory water supply or a recirculating chiller to provide uniform, smile-free electrophoresis, while allowing runs to be performed at higher voltage
  • Deep gel tank with adequate clearance beneath the glass plates to allow a magnetic stirrer to maintain buffer recirculation and uniform pH
  • Dual purpose PAGE insert eliminates time-consuming transfer of glass plates between separate casting and running modules
  • Ground glass plates with bonded injection moulded spacers consistent with comb thickness ensure "clean" well formation, as well as the correct alignment for leak-free casting; also eliminate the need for easily mislaid and awkward to use spacer aligners
  • Ultra-soft silicone mat within cam-caster compensates for glass plate misalignment to ensure leak-free casting
  • Widest selection of combs allow separation of up to 192 samples
  • Asymmetric lid design and color-coded screw pins in PAGE insert prevent polarity reversal
Cat. No. MV-20WAVESYS
Dimension (WxLxH) Approx. 11.8"x7.1"x10.9" (300x180x270mm)
Plate Dimension (WxL) Approx. 7.9"x7.9"x0.2" (200x200x4mm)
Gel Dimension (WxL) Approx. 6.3"x6.9" (160x175mm)
Maximum Sample 192 samples, 48 samples per gel
Total Buffer Volume 4.8~5.3L
Total Volume Inner Buffer Chamber 640ml
Cooling Method Cooling coil
Dummy Plate And Casting Base Yes
Construction Injection molded construction;
Durable, leak proof environment for complete safety and long life
Electrical Safety Lid can only be fastened in one way;
On removal, power is disconnected from buffer chamber
Rapid Casting Gel Use casting dams



Accessories

Cat. No Description
MV-20WAVE-EC MV20 WAVE External Casting Stand - No Casting Base
MV-20WAVECAST MV20WAVE Casting Base
MV-20WAVEDIRM MV20wave Page insert
MV-20WAVE-CC Detachable Cooling Coil
MV-20DCAST Maxi, casting base for MV-10WDSYS and MV-20DSYS
MV-20DCASTM Replacement Rubber mats for MV-10WDSYS and MV-20DSYS casting base
MV-20DIRM Maxi, Inner Running Module
MV-20ICB Maxi Cooling Block.
MV-20LID MV-20  lid (No cables)
MV-20TANK MV-20 Tank
MV-20NG 20 x 20cm Notched Glass Plates 4mm thick ( Pack of 2)
MV-20PG 20 x 20cm Plain Glass Plates 4mm thick ( Pack of 2)
MV-20PGS0.75 20 x 20cm Plain Glass Plates with 0.75mm Bonded Spacers (Pack of 2)
MV-20PGS1 20 x 20cm Plain Glass Plates with 1mm Bonded Spacers ( Pack of 2)
MV-20PGS1.5 20 x 20cm Plain Glass Plates with 1.5mm Bonded Spacers (Paxk of 2)
MV-20PGS2 20 x 20cm Plain Glass Plates with 2mm Bonded Spacers (Pack of 2)
MV-20NGS0.75 20 x 20cm Notched Glass Plates with 0.75mm Bonded Spacers (Pack of 2)
MV-20NGS1 20 x 20cm Notched Glass Plates with 1mm Bonded Spacers ( Pack of 2)
MV-20DP Dummy Plate, 20 x 20cm
MV-20S0.75 20cm Spacers - 0.75mm (Pack of 2)
MV-20S1 20cm Spacers - 1mm thick (Pack of 2)
MV-20S1.5 20cm Spacers - 1.5mm thick (Pack of 2)
MV-20S2 20cm Spacers - 2mm thick (Pack of 2)
Optional combs
MV-20-1-0.75 Comb 1 Prep, 1 Marker, 0.75mm thick
MV-20-5-0.75 Comb 5 sample, 0.75mm thick
MV-20-10-0.75 Comb 10 sample, 0.75mm thick
MV-20-18MC-0.75 Comb 18 sample MC, 0.75mm thick
MV-20-24-0.75 Comb 24 sample, 0.75mm thick
MV-20-30-0.75 Comb 30 sample, 0.75mm thick
MV-20-36MC-0.75 Comb 36 sampl MC, 0.75mm thick
MV-20-48-0.75 Comb 48 sample, 0.75mm thick
MV-20-1-1 Comb 1 Prep, 1 Marker, 1mm thick
MV-20-5-1 Comb 5 sample, 1mm thick
MV-20-10-1 Comb 10 sample, 1mm thick
MV-20-18MC-1 Comb 18 sample MC, 1mm thick
MV-20-24-1 Comb 24 sample, 1mm thick
MV-20-30-1 Comb 30 sample, 1mm thick
MV-20-36MC-1 Comb 36 sampl MC, 1mm thick
MV-20-48-1 Comb 48 sample, 1mm thick
MV-20-1-1.5 Comb 1 Prep, 1 Marker, 1.5mm thick
MV-20-5-1.5 Comb 5 sample, 1.5mm thick
MV-20-10-1.5 Comb 10 sample, 1.5mm thick
MV-20-18MC-1.5 Comb 18 sample MC, 1.5mm thick
MV-20-24-1.5 Comb 24 sample, 1.5mm thick
MV-20-30-1.5 Comb 30 sample, 1.5mm thick
MV-20-36MC-1.5 Comb 36 sampl MC, 1.5mm thick
MV-20-48-1.5 Comb 48 sample, 1.5mm thick
MV-20-1-2 Comb 1 Prep, 1 Marker, 2mm thick
MV-20-5-2 Comb 5 sample, 2mm thick
MV-20-10-2 Comb 10 sample, 2mm thick
MV-20-18MC-2 Comb 18 sample MC, 2mm thick
MV-20-24-2 Comb 24 sample, 2mm thick
MV-20-30-2 Comb 30 sample, 2mm thick
MV-20-36MC-2 Comb 36 sampl MC, 2mm thick
MV-20-48-2 Comb 48 sample, 2mm thick

* SV = Sample volume for 5mm thick gel (ul)


www.bmlabosis.com

Bu ürün BM Laboratuvar sistemleri tarafından ithal edilmektedir.

Product Size Price TL Quaintity
Extra Spacers 0,75/1/1,5mm
MV-20S1
 2 Ad/pk
Extra Comb 0,75/1/1,5mm (Ekstra Tarak Çeşitleri)
MV-20
 1 Adet
20x20cm Extra Notched Glass Plates 4mm thick
MV-20NG
 2 Ad/pk
MV20 WAVE External Casting Stand (No Casting Base / Casting Base hariçtir)
MV20WAVE-EC
 1 adet
omniPAGE WAVE Maksi ( 30 x 18 x 27 )
CVS10DSYS
 Boyutları cm 19x 13 x 15
Complete Maxi Vertical Gel Electrophoresis Maxi 20 x 20 cm Dual, 2 sets of Glass plates with 1mm thick bonded spacer, 2 x 24 sample , 1mm thick combs, cooling pack, dummy plate and casting base
MV-20DSYS
 1 Set
